New
Hyper-spectrometer Equipment and Software for forensic document
examiners
Forensic Hyperspectrum Document Processor
During
6 years of R&D, original 4D hyper-spectrum data processor
software was developed. Based on Hyper-spectrum image stack
processing the software is optimized for specific document
examining tasks. The program is designed to process data from
Hyper-spectral imaging equipment. It was successfully implemented
in our partner product ForensicXP
automatic full digital hyper-imaging spectrograph. The original
patent pending method was developed for spectral signature
unwrapping and enhancement of spectrometer output. An exceptional
sensitivity of the instrument and broad spectral range permits
to detect very small differences in similar inks.
The software was specifically developed for forensic questioned
document experts. Our
new 4D
hyper-spectrum digital technology proved to reveal the
features not detectable by alternative methods.
ForensicXP spectrometer equipped with our software was exhibited
at 4th Conference of the European Document Experts Working
Group entitled “Digital Technology: the Document Examiner’s
Friend and Foe”. The conference
took place September 27-30, 2006 at the auditorium of the
NFI in The Hague, Netherlands.
|
Features |
| Effective
16 bits per spectral channel, total 64 bits per image
pixel, superior resolution |
| Full
digital data acquisition and processing |
| CCD/CMOS
Imager pixel response calibration |
| Flexible
spectral range selection |
| Original
hyper-spectral signature unwrap algorithm |
| Split
screen for simultaneous ink analysis from 2 separate documents |
| Markers
for reference and questioned ink comparison |
| Range
of interest (ROI) area of interest zoom |
| Processed
image reporting |
| Saving
document and processing options (job save) |
| CIE
color xyz and LAB color reporting |
| Line
sequence determination patent pending algorithm |
| 2D
and 3D image output |
| Multiple
markers for averaging of the spectra in multiple points |
| Spectrum
Visualization for any point of questioned document |
3D
Forensic Image Enhancement

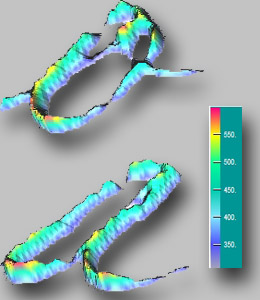

3D visualization software was developed to help forensic experts
to see tiny differences in inks and pen pressure as well as
to detect drawing sequence of the lines. Third dimension in
forensic images helps you The 3D forensic image viewer and
analyzer is a valuable tool for questioned document and handwriting
examiners.
|
Features |
| User
friendly interface |
| Fast
real time output (rotation in all angles to optimize observation) |
| Flexible
zoom in all directions |
| Color
palettes |
| Light
adjustment |
| Single
or multiple simultaneous analysis from different documents |
| Markers
for reference and questioned ink comparison |
| Range
of interest (ROI) area of interest zoom |
| Processed
image reporting |
| 2D
and 3D image output |
| SDK
for VC++, C#, VB, VB.NET |
| |
| |
The
software is available as end user solution and component for
developers.
